Drill Rig Friction Rotary Drilling Interlocking Kelly Bar

Place of Origin Jiangsu, China
Brand Name TYSIM
Certification ISO9001
Model Number TK-L 273-575
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details nude parking
Delivery Time 7-10workdays
Supply Ability 100 set per mouth
Product Details
Color Yellow Or Other Weight Within 10t
Elements 2, 3, 4, 5 Max Drilling Depth 10 To 94 M
Outer Diameter 254~559 Mm Retracted Length 6.00 To 21.75 M
Material 27 Simn, 35 Crmo Size/diameter As Per Customer Demand
High Light

Drill Rig Interlocking Kelly Bar

,

Friction Interlocking Kelly Bar

,

Rotary Drilling Interlocking Kelly Bar

Leave a Message
Product Description

Interlocking Kelly Bar



Number Outer Diameter(mm) Elements Max Drilling Depth(m) Retracted Length(m)
1 254 2 or 3 10 to 30 6.45 to 11.45
2 292 2 or 3 15 to 42 9.35 to 18.20
3 298 3 15 to 33 7.35 to 13.35
4 305 3 or 4 12 to 36 5.75 to 10.50
5 325 3 or 4 15 to 38 6.00 to 10.00
6 343 3 or 4 15 to 48 7.30 to 14.15
7 355 4 18 to 43 6.00 to 13.00
8 368 3 or 4 18 to 52 8.40 to 15.40
9 377 4 40 to 48 11.00 to 15.00
10 394 3 or 4 21 to 64 9.70 to 18.70
11 406 4 29 to 62 8.50 to 16.50
12 419 3 or 4 24 to 68 10.70 to 19.70
13 440 2 or 4 18 to 65 13.00 to 15.00
14 470 3 or 4 24 to 64 10.70 to 19.25
15 483 4 31 to 67 10.50 to 16.50
16 508 4 25 to 53 7.50 to 14.50
17 530 4 or 5 32 to 94 9.00 to 20.00
18 559 3 or 4 30 to 72 13.75 to 21.75

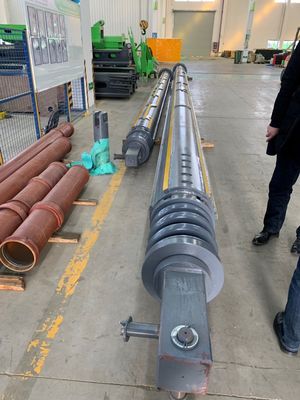

Drill Rig Friction Rotary Drilling Interlocking Kelly Bar 0



Construction photos

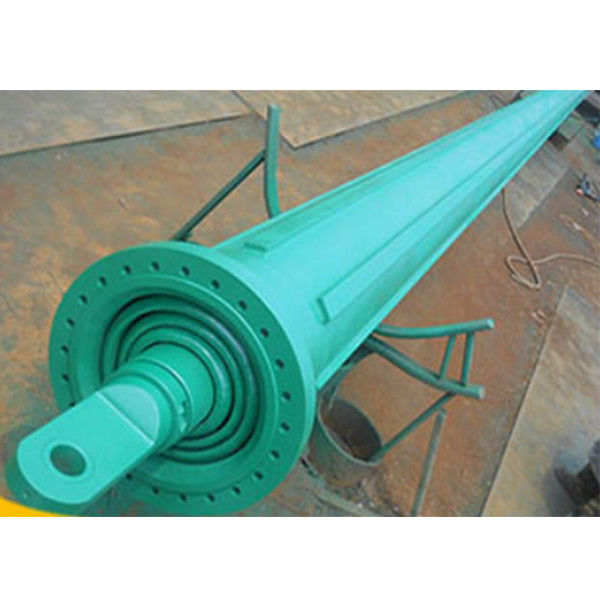

Drill Rig Friction Rotary Drilling Interlocking Kelly Bar 1

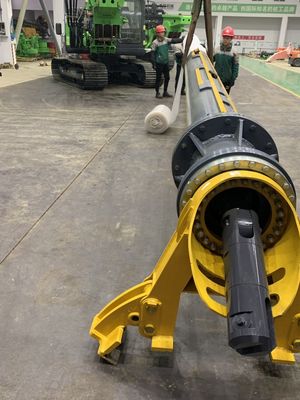

Drill Rig Friction Rotary Drilling Interlocking Kelly Bar 2





TYSIM is the sole agent to supply first-class kelly bars which can be matched with drilling rigs of Bauer, CMV, Soilmec, Casagrande, MAIT, IMT, etc.



Main features:

    · We supply kelly bars for a torque range of 10-350 kN.m and in lengths up to 110 m.

· High-grade materials and special welding guarantee a high durability and wear resistance of our kelly bars.

· We individually adapt our kelly bars to your drilling and rotary power head.

· All kelly bars are available as friction and interlocking version.

· Our kelly bars transfer the maximum torque over the full extended length.

· Individually implementations, especially client specific ones could be made as well as intermediate dimensions.



Why Choose Us?

1.We have good supplier of kelly bar with more than 13 years experience.

2.Using good steels from large factory, making sure kelly bars quality.

3.Supply kelly bars for Soilmec, Bauer, SANY, XCMG and other brands of rotary drilling rig.

4.Competitive price.



FAQ

1.What kind of kelly bar can we provide?

Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,the interlocking Kelly bar and friction Kelly bar , most are for Bauer, IMT , MAIT, SOILMEC, SANY , TEG, SUNWARD ,XCMG ,Etc. For ten years experience, supply all the world clients with good satisfaction.

2.What is the advantages of our kelly bar?

Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive and reasonable price. We have got the ISO9001 certification , no matter you are dealers or end user, you will get the biggest profit.

3. What warranty do we provide?

Ans.: We provide 6 months warranty time.

4. What is the lead time?

Ans.: Usually the lead time is 7days,after receipt of your down payment.

5.What payment terms do we accept?

Ans.: We accept TT in advance and LC at sight .
