Excavator Mounted Mini Integrated Vibratory Pile Hammer Construction Equipment Pile Driver

China Excavator Mounted Mini Integrated Vibratory Pile Hammer Construction Equipment Pile Driver supplier

Large Image :  Excavator Mounted Mini Integrated Vibratory Pile Hammer Construction Equipment Pile Driver

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: ISO9001
Model Number: VS500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: vibratory hammer pile driver, Standard wooden packing
Delivery Time: vibratory hammer pile drive, 7 days after receiving your payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu Province, China (Mainland) Weight: 2.3t
Type: Hydraulic Rotating Speed: 3000 Rpm
Color: Can Be Customized Brand Name: TYSIM
Material: 45# Steel Name: Vibratory Hammer Pile Driver



VS500 construction equipment excavator mounted mini integrated type pile driver



VS500 construction equipment excavator mounted mini integrated type pile driver

Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: TYSIM
  • Model Number: VS500
  • Condition: New
  • Type: Hydraulic vibratory
  • Color: as customer need
  • Suitable for excavator weight: 50-70 tons
  • After-sales Service Provided:: Yes
  • Weight: 2.3t
  • Material: 45# Steel
  • Rotating Speed: 3000 rpm
  • Composition: assistant hand,main body, clip mouth
Model TS-VS250 TS-VS330 TS-VS400 TS-VS450 TS-VS500
Vibration Frequency(Rpm) 3000 3000 3000 3000 3000
Vibrating Force(T) 46.2 56.5 61.8 69.5 77
Hydraulic System Operating Pressure(Bar) 315 315 315 315 315
Hydraulic System Flow Demand(Lpm) 189 240 270 324 324
Main Body Weight(T) 1.7 1.8 2.15 2.2 2.3
Apply to Excavator Weight(T) 20-25 27-32 33-40 40-48 50-70
Clip Mouth Weight(kg) C17:520KG C19:550KG C30B:455KG C35E:530KG
Assistance Arm Weight(kg) A200C:750KG A200CK:755KG A250C:850KG A300C:950KG

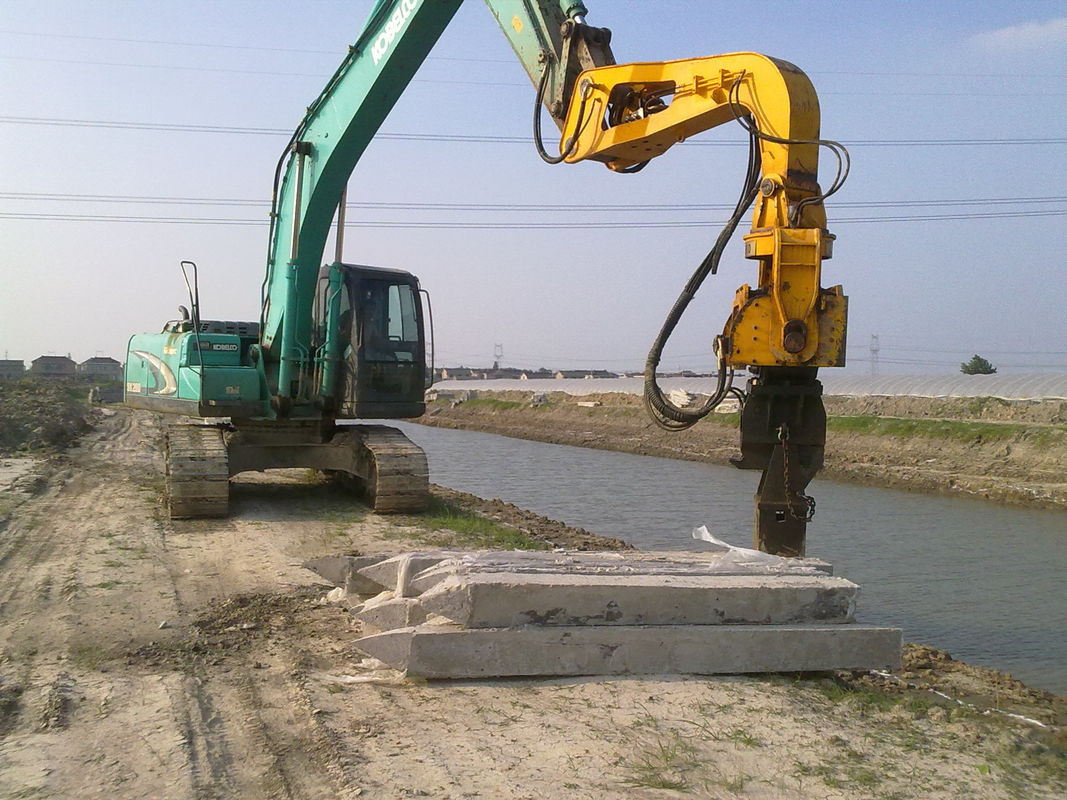

Excavator Mounted Mini Integrated Vibratory Pile Hammer Construction Equipment Pile Driver



Hydraulic Vibratory pile driver



Its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force. Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition, moisture content and type of pile, construction.



Excavator Mounted Mini Integrated Vibratory Pile Hammer Construction Equipment Pile Driver



Products application

The efficient of vibration pile method is higher than other methods. It is mainly applied to steel sheet pile, steel pipe pile and long slender concrete precast pile . This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.
