Max Drilling Depth 68m Pile Driving Equipment , Borehole Drilling Machine 5~26 Rpm Rotation Speed

China Max Drilling Depth 68m Pile Driving Equipment , Borehole Drilling Machine 5~26 Rpm Rotation Speed supplier

Large Image :  Max Drilling Depth 68m Pile Driving Equipment , Borehole Drilling Machine 5~26 Rpm Rotation Speed

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO9001
Model Number: KR220C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Torque: 220 KN.m Max. Drilling Diameter: 2000 Mm
Max. Drilling Depth: 68 M Speed Of Rotation: 5~26 Rpm
Max. Crowd Pressure: 180 KN Max. Crowd Pull: 200 KN
Main Winch Line Pull: 240 KN Auxiliary Winch Line Pull: 110 KN

Max drilling depth 68m KR220C Piling machine Used borehole drilling machine Small bored pile driving machine

 Specification:

Technical specification of KR220C rotary drilling rig
Torque220 kN.m
Max. diameter2000 mm
Max. drilling depth68 m
Speed of rotation5~26 rpm
Max. crowd pressure180 kN
Max. crowd pull200 kN
Main winch line pull240 kN
Main winch line speed70 m/min
Auxiliary winch line pull 110kN
Auxiliary winch line speed60 m/min
Stroke(crowd system)5000 mm
Mast inclination(lateral)±5°
Mast inclination(forward)
Max. operating pressure35 MPa
Pilot pressure4MPa
Travel speed2.0 km/h
Traction force245 kN
Operating height22295 mm
Operating width4300 mm
Transport height3355 mm
Transport width3000 mm
Transport length15960 mm
Overall weight66 t
Engine
ModelCAT-C7.1
Cylinder number*diameter*Stroke(mm)6*112*140
Displacement(L)7.2
Rated Power(kW/rpm)186/1800
Output StandardEuropean III
Kelly Bar
TypeInterlockingFriction
Section*length4*15000(standard)5*15000(optional)
Depth54 m

68 m



Features:
Torque: 220kN.m
Max. drilling diameter:2000mm
Max. drilling depth: 68m
Using Original CAT 330D Excavator Chassis
Competitive Advantage:
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier in China


Description:
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;

4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.

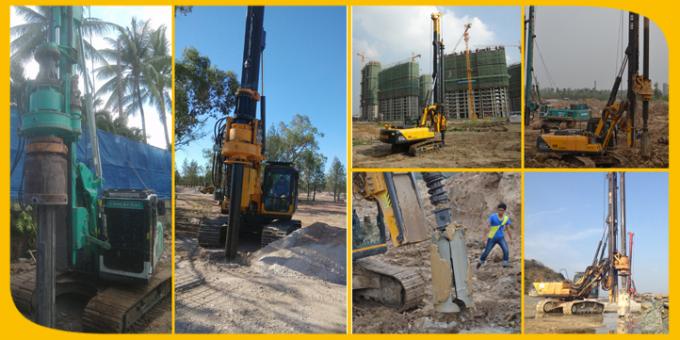

Product Display
Max Drilling Depth 68m Pile Driving Equipment , Borehole Drilling Machine 5~26 Rpm Rotation Speed

Why Choose Us?
1. We are the professional manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Competitive price.

FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
