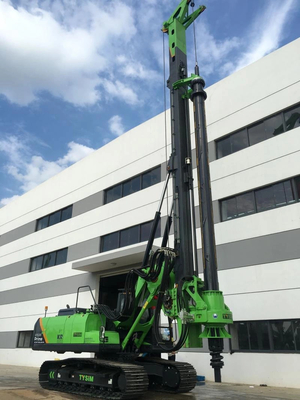

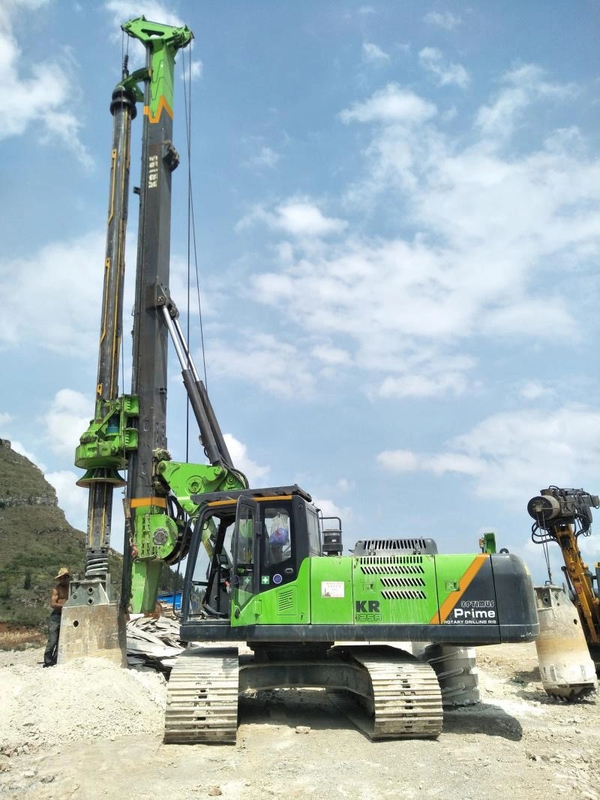

Bore Pile Drilling Rig Equipment Small Hydraulic Rotary TYSIM KR125

​​

Type	KR125C
Torque	125 KN.m
Max. diameter	1500 mm
Max. drilling depth	37 m(Lock)/ 43 m(Friction kelly bar)
Speed of rotation	6~30 rpm
Max. crowd pressure	100 kN
Max. crowd pull	150 kN
Main winch line pull	110 kN
Main winch line speed	78 m/min
Auxiliary winch line pull	60 kN
Auxiliary winch line speed	60 m/min
Stroke(crowd system)	3200 mm
Mast inclination(lateral)	±3°
Mast inclination(forward)	5°
Max. operating pressure	35 MPa
Pilot pressure	3.9 MPa
Travel speed	2.8 km/h
Traction force	205 kN
Operating height	14900 mm
Operating width	3000mm
Transport height	3580 mm
Transport width	3000 mm
Transport length	13825mm
Overall weight	35

​​

​
​​

​

​

​








Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
