28 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A

28 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A

    • 28 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A
    • 28 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A
  • 28 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: TYSIM
    Certification: CE/ISO9001
    Model Number: KR80A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
    Delivery Time: 45 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Torque: 80kN.m Max. Drilling Diameter: 1000 Mm
    Max. Drilling Depth: 28 M Speed Of Rotation: 8~30 Rpm
    Max. Crowd Pressure: 80 KN Max. Crowd Pull: 120 KN
    Main Winch Line Pull: 80 KN Auxiliary Winch Line Pull: 35 KN
    High Light:

    hydraulic rotary piling rig

    ,

    pile drilling equipment

    TYSIM KR80A Hydraulic Piling Rig Machine Max Torque 80kNm Rotary Drilling Rig Construction Equipment

    Technical Specification
    Technical Specification of KR80A Rotary Drilling Rig
    Torque 80 kN.m
    Max. diameter 1000 mm
    Max. drilling depth 28 m(4 node)/22 m(3 node)
    Speed of rotation 8~30 rpm
    Max. crowd pressure 90 kN
    Max. crowd pull 120 kN
    Main winch line pull 80 kN
    Main winch line speed 75 m/min
    Auxiliary winch line pull 35 kN
    Auxiliary winch line speed 40 m/min
    Stroke(crowd system) 2000 mm/3500mm
    Mast inclination(lateral) ±3°
    Mast inclination(forward)
    Max. operating pressure 34.3 MPa
    Pilot pressure 3.9 MPa
    Travel speed 2.8 km/h
    Traction force 124 kN
    Operating height 12705 mm
    Operating width 2890 mm
    Transport height 3465 mm
    Transport width 2770 mm
    Transport length 11385 mm
    Overall weight 24 t
    Engine
    Model Cummins QSB4.5
    Form Water cooling, 4 Cylinder in-line, Turbocharger
    Cylinder number*diameter*Stroke(mm) 4*107*124
    Displacement(L) 4.5
    Rated Power(kW/rpm) 90/2200
    Max. Torque(N.m/rpm) 470/1400
    Kelly Bar
    Type Interlocking Friction
    Section*length 3*7800 mm 4*7800 mm
    Depth 22 m 28 m



    1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

    Type: New & Used

    Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



    2. Hydraulic Parts-----World Famous Brands

    Gearbox Reducer: Imported REXROTH

    Main Pump & Valve: Imported KAWASAKI (Japan)

    Hose: Imported



    3. Structure Parts-----Professional Structure Parts Supplier for XCMG

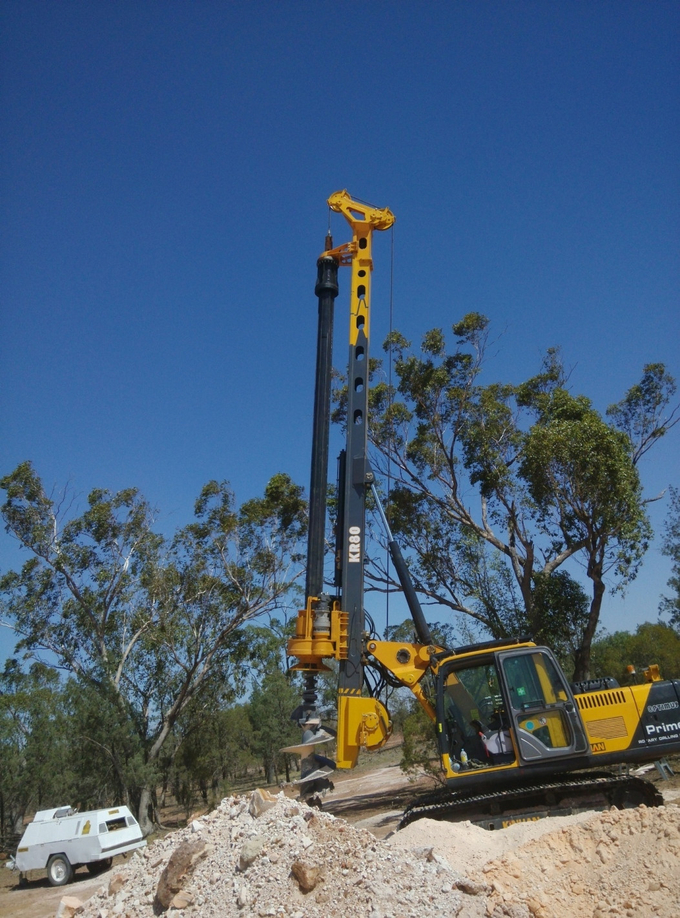

    construction photos

    28 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A 028 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A 1



    28 m Drilling Depth Rotary Piling Rig with 80kN.m Torque 8 - 30 rpm Rotation Speed KR80A 2


    Our Services

    Why Choose Us?

    1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
    2. Supply professional customized service to meet all your requirements.
    3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
    4. Competitive price.

    FAQ

    Q1: What is the Warranty of the Rotary Drilling Rig?
    The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
    Please contact with us for detailed Warranty Regulation.
    Q2: What's your service ?
    We can offer professional technical support and good after-sale service to you.
    Modification methods will be different according to different models and configurations of your owned excavators.
    Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
    Before modifying, you need to confirm technical specification.
