|Length Of Grooving:||3500mm||Width Of Grooving:||400mm-1000mm|
|Depth Of Grooving:||60m Or More||Capacity Of Grab Bucket:||0.8CBM-1.8CBM|
|Steel Wire Diameter:||28mm||Weight:||9.8t-11.9t|
|Capacity Of Crane:||Over 40t||Pull Force Requirement:||Over 200kN|

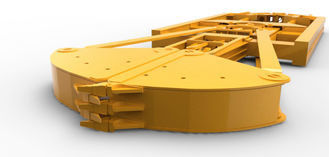

KH400 Mechanical Diaphragm Wall Grab for Building Foundation Construction Cooperated
1. The specific extra-wide chassis manufactured with XCMG's mature technologies, having large swiveling supports and great torsion resistance, provides a stable base for the hoost machine.
2. Double winch and single row rope construction extend the life-span of the steel rope, reduce the construction cost. The control system equipped with an encoder ensures the accurate aynchronization of double winches reduces the frequency of synchronized adjustment and increases the construction efficiency.
3. Equipped with advanced inclinometer, which can provide the grab adjustment and fall down protection function, it can record and memory the locus grab, and draw the wall curve. This can effctively guarantee the wall precision.
|Technical specification of KH400 diaphragm wall grab|
|Length of grooving (a)||3500 mm|
|Width of grooving (b)||400~1000 mm|
|Depth of grooving||60 m|
|Capacity of grab bucket||0.8~1.8 m³|
|Diameter of steel wire rope||28 m|
|Grab weight||9~11.5 t|
|Excavation volum||0.85~1.3 m³|
|Excavators weight||2~3 t|
|Crawler cranes||≥40 t|
|Requirements||pull 200 KN|
1. Good raw material and fine workmanship .
2. High temperature,high pressure,high wear resistance .
3. Own complete production chain,independent research and development group .
4. our products are available in different specifications and dimensions and we offer these products at reasonable prices. we manufacture these products using high class raw materials using sophisticated technologies .
5. Professional tracing service,range from half to one year maintenance period.
