Tower Crane QTZ63 Construction Mobile Tower Crane5610

China Tower Crane QTZ63 Construction Mobile Tower Crane5610 supplier

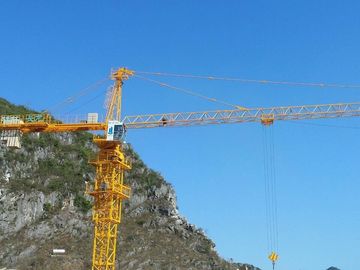

Large Image :  Tower Crane QTZ63 Construction Mobile Tower Crane5610

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO9001
Model Number: QTZ80(5810)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing; dimension according to your requirementse Flat rack container.
Delivery Time: 20-45 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Product Name: Tower Crane Max. Lifting Height: 140 M
Condition: New Dimension: 2.8*1.6*1.6m
Max Hoisting Weight: 6 T Total Power: 32.8 KW
Hoisting Speed: 4.25-80 M/min Hosting Moment: 800 KN.m



Tower Crane QTZ63 Construction Mobile Tower Crane5610



We can make products of QTZ40 QTZ60 QTZ50 QTZ63



Product Type Basic height(m) Maximum height (m) Jib Length(m) Radius changing speed(m/min) Maximum Working amplitude (m) Maximum rated torque (KN.m) Rated Lifting Moment:(T) Main Specifications Steel String (mm) Festiveal Standard Specifications (mm)
QTZ40(4808) 30 120 48 34/22 3-48 400 4 ∠160×160×12 1500×1500×2200
QTZ40(4810) 30 120 48 34/22 3-48 400 4 ∠160×160×12 1500×1500×2200
QTZ50(5008) 30 120 50 34/22 3-50 400 4 ∠160×160×12 1500×1500×2200
QTZ63(5010) 30 120 50 34/22 3-50 575 5 ∠160×160×14 1600×1600×2500

QTZ63(5013)



40 151 50 44/22 3-50 630 6 ∠160×160×16 1600×1600×2500
QTZ63(5610) 40 151 56 44/22 3-56 630 6 <135×135×12

1800×1800×2500





Components description of zoomlion tower crane price



Mast: the main supporting tower of the crane. It is made of steel trussed sections that are connected together during installation.



Slewing unit: the slewing unit sits at the top of the mast. This is the engine that enables the crane to rotate.



Operating cabin: the operating cabin sits just above the slewing unit. It contains the operating controls.



Jib: the jib, or operating arm, extends horizontally from the crane. A "luffing" jib is able to move up and down; a fixed jib has a rolling trolley that runs along the underside to move goods horizontally.



Counter jib: holds counterweights, hoist motor, hoist drum and the electronics.



Hoist unit: the hoist unit houses the hoist drum, hoist cable, gear box, gear shift, brake, and supporting components.



Hook: the hook (or hooks) is used to connect the material to the crane. It hangs at the end of thick steel cables that run along the jib to the motor.



Weights: Large concrete counterweights are mounted toward the rear of the mast, to compensate for the weight of the goods lifted.

Tower Crane QTZ63 Construction Mobile Tower Crane5610







Packing & Delivery terms:

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
