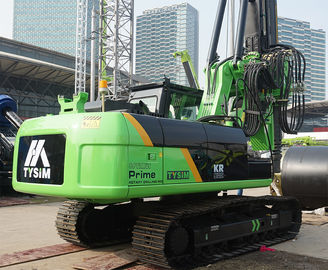

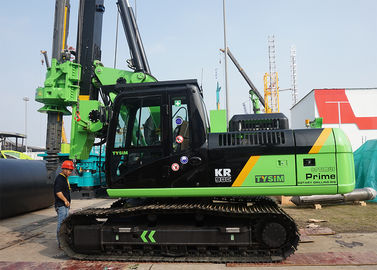

Water Well Hydraulic Piling Rig Equipment

Water Well Hydraulic Piling Rig Equipment
Water Well Hydraulic Piling Rig Equipment Water Well Hydraulic Piling Rig Equipment Water Well Hydraulic Piling Rig Equipment Water Well Hydraulic Piling Rig Equipment Water Well Hydraulic Piling Rig Equipment

Large Image :  Water Well Hydraulic Piling Rig Equipment

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO900A
Model Number: KR90C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or LC
Supply Ability: 30 sets per month

Water Well Hydraulic Piling Rig Equipment

Description
Torque: 90 KN.m Max. Crowd Pressure: 90 KN
Max. Drilling Diameter: 1000 Mm Max. Crowd Pull: 120 KN
Max. Drilling Depth: 32 M Main Winch Line Pull: 90 KN
Speed Of Rotation: 8~30 Rpm Auxiliary Winch Line Pull: 20 KN
High Light:

hydraulic rotary piling rig

,

pile drilling equipment

32m Depth Foundation Pile Water Well Drilling Equipment with 1m Max Drilling Dia







Specification:

Technical Specification of KR90C Rotary Drilling Rig

Type

KR90C

Torque

90 kN.m

Max. drilling diameter

1000 mm

Max. drilling depth

32m

Speed of rotation

8~30 rpm

Max. crowd pressure

90 kN

Max. crowd pull

120 kN

Main winch line pull

90 kN

Main winch line speed

72m/min

Auxiliary winch line pull

20 kN

Auxiliary winch line speed

40 m/min

Stroke(crowd system)

3200 mm

Mast inclination(lateral)

±3°

Mast inclination(forward)

Max. hydraulic pressure

34.3 MPa

Control hydraulic pressure

3.9 MPa

Travel speed

2.8 km/h

Traction force

98 kN

Operating height

14660 mm

Operating width

2700 mm

Transport height

3355 mm

Transport width

2700 mm

Transport length

12270 mm

Overall weight

28t

Chassis

Type

CAT 318D

Engine

CAT3054CA











Description:

The leading overall transport hydraulic rotary drilling rig, can change transport state into working state rapidly;

High-performance hydraulic system and control system in cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor.

High security, design in strict accordance with European Union safety standards EN791. Meet the requirements of dynamic and static stability

Optional structural of single-cylinder luffing mechanism to make the action stable and easy maintenance and repair;

Optimized designing of two-stage mast, achieve docking and holding of the mast automatically, improve the efficiency and save manpower;

Advanced rotary angel displacement output mechanism and the central rotary joint output angular displacement design gets higher reliability;

Innovative drilling bucket depth measurement system shows higher accuracy than the average rig;

Main winch bottoming protection and priority control function, making the operation easier;

The driving head adopt reversible design to doubled its life;

Multi-stage damping technology of the driving head to ensure that the whole construction is more accuracy;

Mast automatically adjust the vertical to enhance the accuracy of the hole;

The innovative design Wind-Fire Wheels the innovative design ensure work safer in nighttime;

Humanity of the rear design can effectively increases storage space.





Competitive Advantage:

1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other

2. Hydraulic Parts-----Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported

3. Structure Parts-----Professional Structure Parts Supplier in China



KR90C Piling Rig
