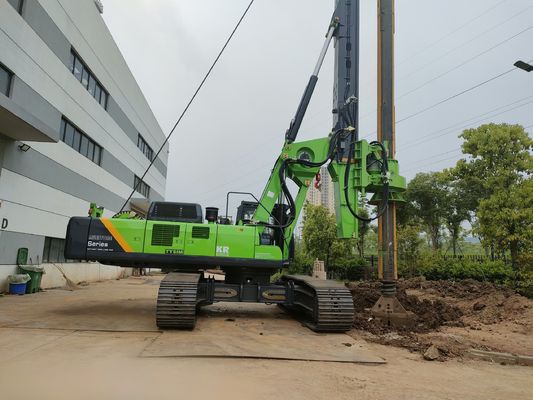

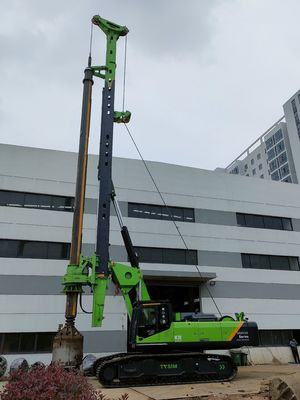

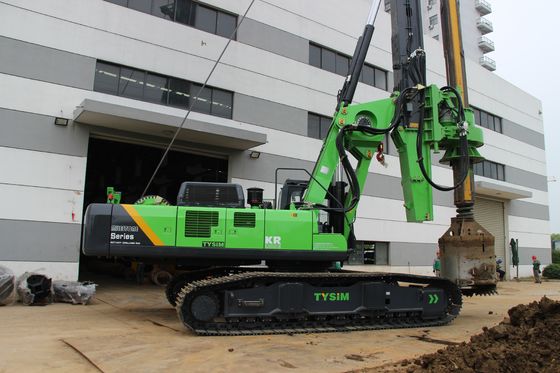

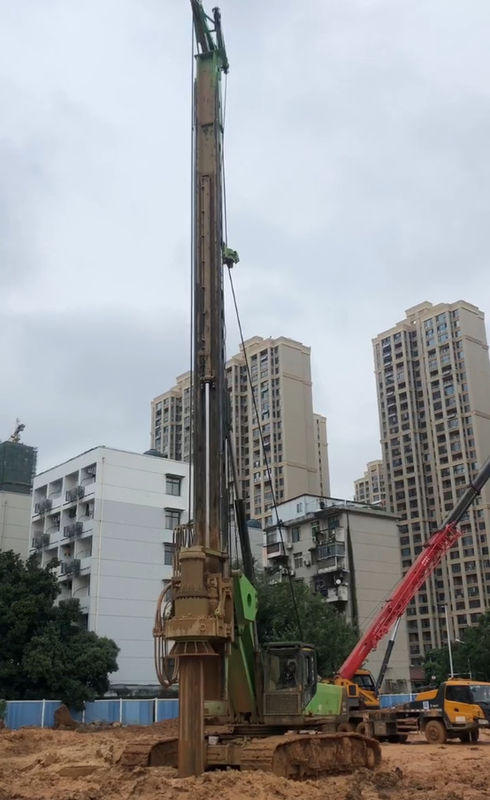

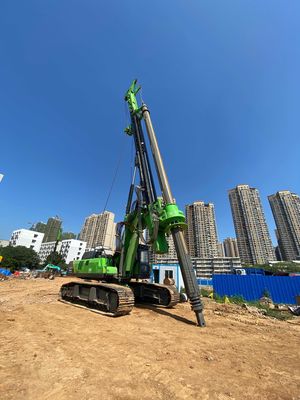

Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering

Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering
Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering
Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering

Large Image :  Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO900A
Model Number: KR300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or LC
Supply Ability: 30 sets per month

Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering

Description
Max. Drilling Depth: 54m Max. Drilling Diameter: 2000 Mm
Torque: 320 KN.m Max. Crowd Pressure: 220 KN
Operating Height: 22903 Mm Overall Weight: 90 T
Main Winch Line Pull: 320 KN Main Winch Line Speed: 73m/min
Travel Speed: 3.2 Km/h Max. Crowd Pull: 220 KN
Speed Of Rotation: 7~23 Rpm Traction Force: 560 KN
High Light:

depth 54meter bored pile rig

,

tysim bored pile rig

,

civil engineering piling equipment

TYSIM KR300D Hydraulic rotary drilling rig with Depth 54m Diameter 2000mm and torque 320KN.m



Products description



TYSIM piling machinery boasts high efficiency with its performance higher than the common similar piling machine
in the world. The reliable structure ensures the piling machine can operate in harsh working condition. TYSIM piling
rigs is widely used in civil engineering, city construction and railway piling construction. As drilling equipment, the piling
rigs can be used in clay, pebble bed and rock. The powerful engine and reliable components make a solid foundation
for rotary drilling rig to achieve excellent performance. And the intelligent design make safer operation and less troubleshooting cost.


Technical Specification
Technical specification of KR300D rotary drilling rig
Torque 320 kN.m
Max. diameter 2000mm
Max. drilling depth 83/54
Speed of rotation 7~23 rpm
Max. crowd pressure 220 kN
Max. crowd pull 220 kN
Main winch line pull 320 kN
Main winch line speed 73 m/min
Auxiliary winch line pull 110 kN
Auxiliary winch line speed 70 m/min
Stroke(crowd system) 6000 mm
Mast inclination(lateral) ±5°
Mast inclination(forward)
Max. operating pressure 34.3MPa
Pilot pressure 4 MPa
Travel speed 3.2 km/h
Traction force 560 kN
Operating height 22903 mm
Operating width 4300 mm
Transport height 3660 mm
Transport width 3000 mm
Transport length 16525 mm
Overall weight 90t
Engine
Model Cummins QSM11(III) -C375
Cylinder number*diameter*stroke(mm) 6*125*147
Displacement(L) 10.8
Rated power(kW/rpm) 299/1800
Output standard European III
Kelly bar
Type Interlocking Friction
Section*length 4*15000(standard) 6*15000(optional)
Depth 54m 83m















































































































product photo

Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering 0


Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering 1

1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCM





Product introduction

TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.

Packing show

Depth 54meter Bored Pile Rig , Tysim Piling Equipment For Civil Engineering 2

Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
