KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine

KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine
KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine

Large Image :  KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR40A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Overall transport; Packaged in one flat rack.
Delivery Time: 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 set per month

KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine

Description
Max. Drilling Diameter: 1000mm Max. Drilling Depth: 10 M/12m
Speed Of Rotation: 7~40 Rpm Max. Cylinder Trip: 600/900 Mm
Main Winch Line Speed: 30m/min Main Winch Pull Force: 4.5 T
Operating Height: 7420 Mm Operating Width: 2300 Mm
Transport Weight: 5.4 T Excavator Size: 8 T-13 T
Torque: 32/42 KN.m
High Light:

30m/min pile bore machine

,

30m/min hydraulic piling rig

,

narrow space construction hydraulic piling rig

Compact modified drilling rigs: KR40/50 series


Technical Specification

Rotary Drilling Rig Model KR40A
Excavator Size 8t-13t
Max. torque 32-42 kN.m
Max. drilling diameter 1200 mm
Max. drilling depth 10 m
Main winch pull force 70KN
Max. cylinder trip 600/900 mm
Auxiliary winch pull force 45 kN
Main winch speed 30 m/min
Mast inclination(Lateral) ±6°
Mast inclination(Forward) -30°~﹢90°
Working speed 7-40rpm
Min. radius of gyration 2750mm
Max. pilot pressure 31.5Mpa
Operating height 7181mm
Operating width 2300mm
Transport height 3014mm
Transport width 2300mm
Transport length 7157mm
Transport weight 5.4t
Remark Restructuring big arm



Specialty
Modify the excavator to be small rotary drilling rig machine


Change the profit model of rotary drilling machine


Excavators and rotary drilling rigs can be switched


Narrow space construction


Rely on a wall construction


convenient transportation

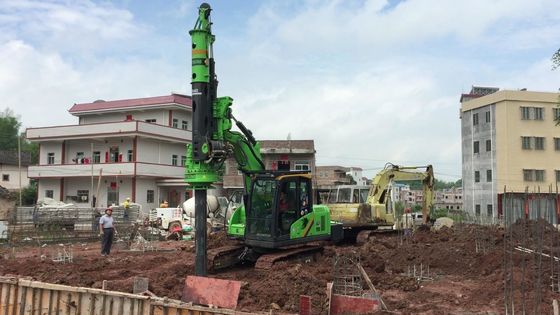

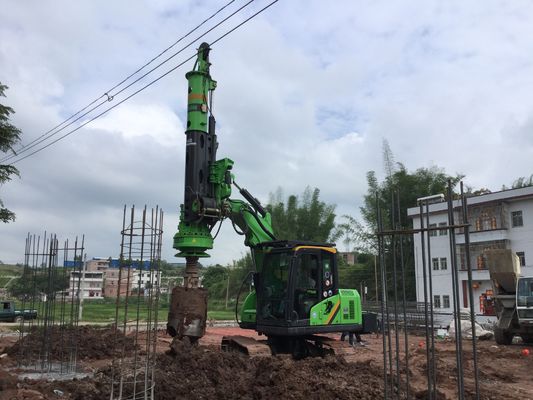

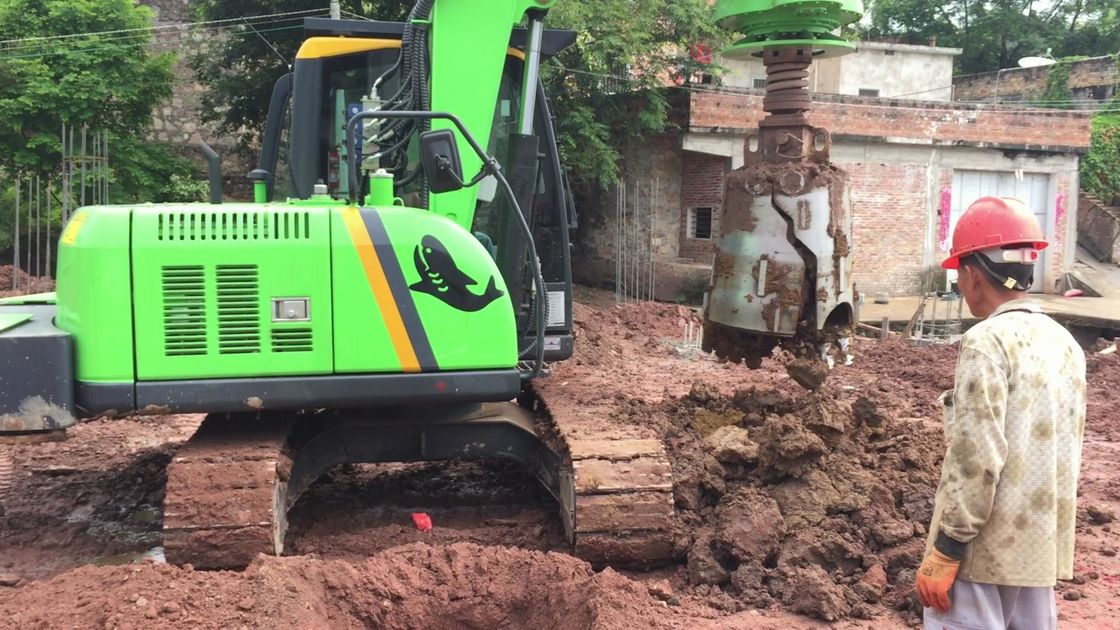

construction photos

 KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine 0

KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine 1

KR40A 30m/Min Hydraulic Piling Rig Small Drilling Bore Machine 2

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
