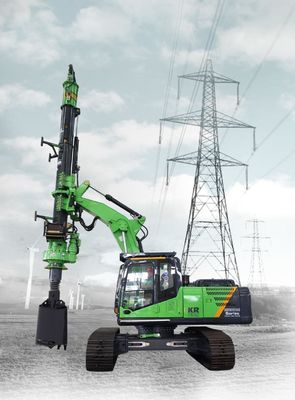

KR50D 30 rpm Hydraulic Small Rotary Piling Machine 20 m Max. drilling diameter 1200 mm

KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm
KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm

Large Image :  KR50D 30 rpm Hydraulic Small Rotary Piling Machine 20 m Max. drilling diameter 1200 mm

Product Details:
Place of Origin: CHINA
Brand Name: TYSIM
Certification: CE and ISO
Model Number: KR50D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD180000
Delivery Time: 35
Payment Terms: L/C, T/T
Supply Ability: 10SET/MONTH

KR50D 30 rpm Hydraulic Small Rotary Piling Machine 20 m Max. drilling diameter 1200 mm

Description
Max. Torque: 110 KN.m Max. Drilling Diameter: 1200mm
Max. Drilling Depth: 20m Max. Cylinder Thrust: 76kN
Max. Cylinder Trip: 1100 Mm Main Winch Pull Force: 65 KN
Main Winch Speed: 48m/min Mast Inclination(Lateral): ±6°
Mast Inclination(Forward): 3-90 Working Speed: 7-30rpm
Min. Radius Of Gyration: 2750mm Max. Pilot Pressure: 34.5Mpa
Operating Height: 10740mm Operating Width: 2600mm
Transport Height: 3040mm Transport Width: 2600mm
Transport Length: 12500mm Transport Weight: 28 Tons
High Light:

hydraulic rotary piling machine

,

20m rotary piling machine

,

30rpm rotary piling machine

Products Description

1. Dual drive power head, maximum output torque: 100KN.M

2. Expansion chassis(double-width ). The operating width is 3600mm and the transport width is 2600mm. The equipment has good passability and high construction stability.

3. The maximum drilling depth is 16m. It can realize the large drilling diameter construction through different drilling tools and construction methods;

4. High traction for walking. The whole machine is flexible can meet the requirement of 20° ramp for normal driving;

5. Solid chassis which is low center of gravity and easy to move in short distance.

Technical Specification

Technical Specification Unit
Max Torque kN.m 110
Max. diameter mm 1200
Max. drilling depth m 20
Speed of rotation rpm 7-30
Max. crowd pressure kN 76
Max. crowd pull kN 90
Main winch line pull kN 65
Main winch line speed m/min 48
Auxiliary winch line pull kN 20
Auxiliary winch line speed m/min 38
Stroke(crowd system) mm 1100
Mast inclination(lateral) ° ±6
Mast inclination(forward) ° 3
Mast inclination(backward) ° 90
Max. operating pressure mpa 34.3
Pilot pressure mpa 3.9
Travel speed km/h 5.6
Traction force kN 220
Operating height mm 10740
Operating width mm 2600
Transport height mm 3040
Transport width mm 2600
Transport length mm 12500
Overall weight t 28
Engine performance
Engine Model   CumminsQSB7
Cylinder number*Cylinder diameter*Stroke mm 6×107×124
Displacement L 6.7
Rated Power kw/rpm 124/2050
Max. Torque N.m/rpm 658/1500
Emission Standard U.S.EPA Tier3

Kelly bar Friction Kelly Bar Interlocking kelly bar
Outside(mm)   Φ325
Section*each length(m)   4×5.5
Max depth(m)   20



KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm 0



Product Details

KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm 1

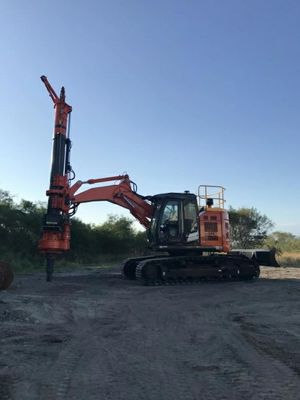

Construction photos


KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm 2


KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm 3



Product introduction

TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.



Customized KR50 drilling rig for embankment reinforcement project



KR50D 30 rpm Hydraulic Small Rotary Piling Machine  20 m Max. drilling diameter 1200 mm 4



As the river is relatively busy, the construction should ensure the normal navigation of other vessels.



Construction layer :

Silt, clay, strong weathering rock

Drilling depth:11m,

Drilling diameter:600mm,

30 minutes for one Hole.
