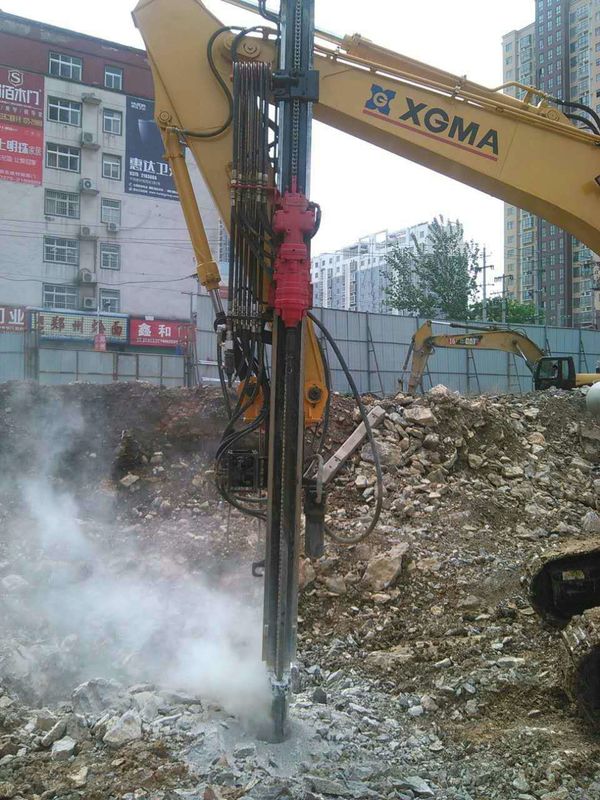

Excavator Mounted Hard 12 M Rock Drilling Rig

Excavator Mounted Hard 12 M Rock Drilling Rig
Excavator Mounted Hard 12 M Rock Drilling Rig
Excavator Mounted Hard 12 M Rock Drilling Rig Excavator Mounted Hard 12 M Rock Drilling Rig

Large Image :  Excavator Mounted Hard 12 M Rock Drilling Rig

Product Details:
Place of Origin: China
Brand Name: TYSIM
Certification: ISO9001
Model Number: DR150-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD55,000--65,000/Set
Packaging Details: Wooden Case+Nude Packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/Month

Excavator Mounted Hard 12 M Rock Drilling Rig

Description
Type: DR150-12 Drilling Dia.: 64-102 Mm
Drilling Depth: 1.2-12 M Drill Rod Length: 1.2-6 M
Mast Length: 3-8 M Excavator Model: 15-30 T
Control Method: Hydraulic/Electric/Wireless Remote Drifter Model: DR150
Application: Quarry Stone, Municipal Construction
High Light:

rock drilling equipments

,

deeprock drilling rigs


Excavator Mounted Hard 12 M Rock Drilling Rig

Hard Rock Drilling Rig matches with your owned excavator.


DR150-12 Technical Parameters
Drilling Diameter 64-102mm
Driling Depth 1.2-12m
Drill Rod length 1.2-6m
Mast Length 3-8m
Excavator Model 15-30t
Control Method for Choose Hydraulic control
Electronic control
Wireless remote control
Drifter Model DR150
Application Quarry Stone, Municipal Construction



DR150 Hydraulic Rock Drill Technical Parameters
Drilling Diameter 64-89 mm
Impact Pressure 150-180 bar
Impact Flow 50-80 L/min
Impact Frequency 3000 bpm
Impact Power 18 kw
Rotary Pressure(Max.) 180 Bar
Rotary Flow 40-60 L/min
Rotary Torque(Max.) 600 N.m
Rotary Speed 250 rpm
Shank Adapter R36/T38/T
Weight  130 kg

 Excavator Mounted Hard 12 M Rock Drilling Rig 0

Detail information on rock drilling rig:

It is a kind of drilling equipment by converting hydraulic energy into mechanical energy.

It consists of impact mechanism, rotating mechanism and water and gas slag discharge mechanism.



Working Principle of Hydraulic Rock Drill:

The piston is forced to reciprocate at high speed in the cylinder block by differential pressure action,
and the impact bit tail realizes the chisel effect.
The piston and the reversing valve move independently and restrict each other.
Before the piston cavity subjected to normal pressure oil,
the movement of the piston is through the change of directional control valve has been change after the piston chamber pressure and implementation;
The reversing valve is through the piston movement back and forth to open or close the oil signal hole,
in order to change the pressure area of the reversing valve to achieve.
The hydraulic motor provides torque and speed to the bit tail through gear transmission.

When the bit touches the rock, the piston reciprocates to transfer the impact energy to the bit to break the rock through the bit tail
and drill pipe.
The rotary motion of the hydraulic motor delivers the torque and rotation speed to the bit through the gearbox,
the bit tail and the drill pipe to assist the bit in crushing the rock.
The water-air slagging mechanism relies on the external injection joint to flush the water or gas through the drill tail, drill pipe,
drill bit's inner hole or blow air to discharge the impact broken gravel to the hole and assist the impact broken rock.


Hydrulic drill structure



Excavator Mounted Hard 12 M Rock Drilling Rig 1



1. Bit shank 2.Injection ventilation complement 3. Driving gear box

4. Hydraulic motor 5.energy accumulator 6. Impact assembly

7. Oil return buffer



Impact part



Excavator Mounted Hard 12 M Rock Drilling Rig 2

1. Piston:The impact energy of the piston acting on the bit shank produces impact breaking effect on rock and other materials.

The impact frequency can be adjusted according to different applications.



2. Reversing valve:Connected to the engine body, reversing valve and piston can be mutually controlled through the principle of stroke feedback, forming a fast running matching system.



3. Energy accumulator: Adding impact flow or absorb excessive pressure to keep the hydraulic system stable





Rotating part



Excavator Mounted Hard 12 M Rock Drilling Rig 3
DR150 Hydraulic rock drill

Excavator Mounted Hard 12 M Rock Drilling Rig 4



Information we need to know before do the order:



1. For which type working condition? Mines, Tunnels, Road beds?

2. Which type rig you need?

Rock drill? All-in-one machine? Excavator attachment? Multi-hole drill?

Drilling and splitting all-in-one machine? road drill? Special drill and so on.

3. What's the diameter and depth needing?

4. Whether a dust collector is required?



Excavator Mounted Hard 12 M Rock Drilling Rig 5
