Small Rotary Pile Drilling Rig Machine Max Output Torque 90kn . M Pile Rig

China Small Rotary Pile Drilling Rig Machine Max Output Torque 90kn . M Pile Rig supplier
Small Rotary Pile Drilling Rig Machine Max Output Torque 90kn . M Pile Rig supplier Small Rotary Pile Drilling Rig Machine Max Output Torque 90kn . M Pile Rig supplier

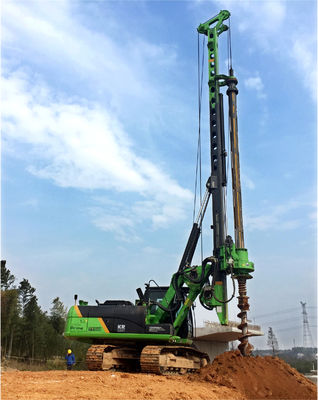

Large Image :  Small Rotary Pile Drilling Rig Machine Max Output Torque 90kn . M Pile Rig

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO900A
Model Number: KR90C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or LC
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Torque: 90 KN.m Max. Crowd Pressure: 90 KN
Max. Drilling Diameter: 1000 Mm Max. Crowd Pull: 120 KN
Max. Drilling Depth: 32 M Main Winch Line Pull: 90 KN
Speed Of Rotation: 8~30 Rpm Auxiliary Winch Line Pull: 20 KN







Small Rotary Drilling Machine Tysim Piling Drill Rig, KR90C Max. output Torque 90kn.m Pile rig​



Performance

●The leading overall transport hydraulic rotary drilling rig can change transport state into working state rapidly;

●High-performance hydraulic system and control system in cooperation with Tianjin University CNC

Hydraulic institute of Technology, which can realize the machine’s efficiently and real-time monitor;

●High security, designed in strict accordance with European Union safety standards EN1228, Meet the requirements of dynamic and static stability.



Specification:

Technical Specification of KR90C Rotary Drilling Rig

Type

KR90C

Torque

90 kN.m

Max. drilling diameter

1000 mm

Max. drilling depth

32m

Speed of rotation

8~30 rpm

Max. crowd pressure

90 kN

Max. crowd pull

120 kN

Main winch line pull

90 kN

Main winch line speed

72m/min

Auxiliary winch line pull

20 kN

Auxiliary winch line speed

40 m/min

Stroke(crowd system)

3200 mm

Mast inclination(lateral)

±3°

Mast inclination(forward)

Max. hydraulic pressure

34.3 MPa

Control hydraulic pressure

3.9 MPa

Travel speed

2.8 km/h

Traction force

98 kN

Operating height

14660 mm

Operating width

2700 mm

Transport height

3355 mm

Transport width

2700 mm

Transport length

12270 mm

Overall weight

28t

Chassis

Type

CAT 318D

Engine

CAT3054CA









Small Rotary Pile Drilling Rig Machine Max Output Torque 90kn . M Pile Rig





Description:

Optional structural of single-cylinder luffing mechanism to make the action stable and easy maintenance and repair;

Optimized designing of two-stage mast, achieve docking and holding of the mast automatically, improve the efficiency and save manpower;

Advanced rotary angel displacement output mechanism and the central rotary joint output angular displacement design gets higher reliability;

Innovative drilling bucket depth measurement system shows higher accuracy than the average rig;

Main winch bottoming protection and priority control function, making the operation easier;

The driving head adopt reversible design to doubled its life;

Multi-stage damping technology of the driving head to ensure that the whole construction is more accuracy;

Mast automatically adjust the vertical to enhance the accuracy of the hole;

The innovative design Wind-Fire Wheels the innovative design ensure work safer in nighttime;

Humanity of the rear design can effectively increases storage space.
