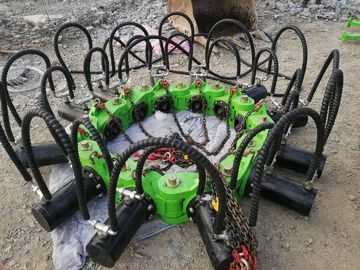

Simply Operated Low Noise Pile Cutting Equipment hydraulic pile breaker Max Cutting Diameter 300mm - 1050mm

China Simply Operated Low Noise Pile Cutting Equipment hydraulic pile breaker  Max Cutting Diameter 300mm - 1050mm supplier

Large Image :  Simply Operated Low Noise Pile Cutting Equipment hydraulic pile breaker Max Cutting Diameter 300mm - 1050mm

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE, ISO9001
Model Number: KP315A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden packing
Delivery Time: 10-12 workdays
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 per mounth
Contact Now
Detailed Product Description
Pile Diameter: 300~1050mm Crowd Stroke: 135mm
Max. Crowd Pressure: 30MPa Quantity/8h: 40/8h
Max. Single Cutting Height: ≤300mm Single Module Weight: 100kg
Max.rod Pressure: 280kN Max. Cylinder Required: 20L/min
Condition: New Color: Yellow
Type: Hydraulic Breaker



TYSIM Hydraulic Piling Rig KP315A



Technical specification KP315A(13 modules combination)
Pile diameter Φ300~Φ1050mm
Max.rod pressure 280kN
Max. cylinder stroke 135mm
Max. crowd pressure 30MPa
Max. single cylinder flow 20L/min
Quantity/8h 40/8h
Max. single cutting height ≤300mm
Excavator capacity ≥20t
Single module weight 100kg
Single module size 645×444×316 mm
Operating size Φ2098×Φ4840 mm
Total weight 1.7t



KP315A construction parameters
Module numbers The diameter range Platform Weight Weight Height of single crush pile
6 Φ300~Φ350 mm ≥12 t 1000 kg ≤300 mm
7 Φ350~Φ450 mm ≥12 t 1100 kg ≤300 mm
8 Φ450~Φ550 mm ≥16 t 1200 kg ≤300 mm
9 Φ550~Φ650 mm ≥16 t 1300 kg ≤300 mm
10 Φ650~Φ760 mm ≥20 t 1400 kg ≤300 mm
11 Φ760~Φ860 mm ≥20 t 1500 kg ≤300 mm
12 Φ860~Φ960 mm ≥20 t 1600 kg ≤300 mm
13 Φ960~Φ1050 mm ≥20 t 1700 kg ≤300 mm



Simply Operated Low Noise Pile Cutting Equipment hydraulic pile breaker  Max Cutting Diameter 300mm - 1050mm



Product Details

1. Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder

2. Module-----Steel Casing, which is stronger than iron welding

3. Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity



Performance

1. Simply operated with less staff, reducing the construction cost.

2. Crushing the piles wholly, reducing the consumption of energy.

3. Using adjustable chain, the pile breaker/cutter can be applied to constructions in different terrains.

4. Full hydraulic drive, low noise operation.

5. Quick assembled, more convenient to transport and more effciently.

6. Applying new material and new technology makes it much more reliable and reduces maintenance cost.

7. The design of simple changing modular and general technology can realize quick maintenance and extend the service life.

8. The design of long life can bring customers optimal benefits.

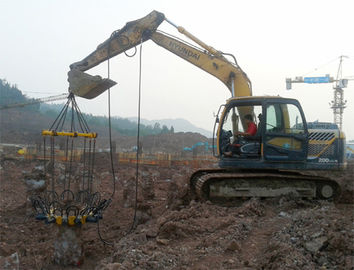

The operation steps of the pile

1. Make the pile breaker move to the place of the pile head.

2. Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.

3. Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.

4. After cutting the pile, hoist the concrete block.

5. Move the crushed pile to the designed positions,



Why Choose Us?

1. We are the first factory to design & manufacture pile breaker in China with over 4 years.

2. We have the Patent for Invention of Hydrauilc Pile Breaker in China.

3. Our pile breakers have been sold to more than 20 countries, with good feedback.

4. Using best material, our pile breaker is the best quality
