TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig

TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig
TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig
TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig

Large Image :  TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR50A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Overall transport; Packaged in one flat rack.
Delivery Time: 30 working days after recieving the advanced payment
Payment Terms: L/C, T/T
Supply Ability: 5 set per month

TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig

Description
Max. Torque: 50 KN.m Max. Drilling Diameter: 1200 Mm
Max. Drilling Depth: 16m, 20m, 24 M Speed Of Rotation: 7~30 Rpm
Max. Cylinder Stroke: 1100 Mm Main Winch Line Speed: 48 M/min
Main Winch Pull Force: 75 KN Max. Operating Height: 8970mm/ 10900mm/ 13730mm
Max. Operating Width: 2600mm/ 2800mm/ 3300mm Max. Transport Weight: 7 T
Excavator Size: 21 T Or Above
High Light:

bored pile drilling machine

,

hydraulic rig machine

1200mm Max Pile Diameter Hydraulic Piling Machine , 24m Max Depth Borehole Drilling Machine

Rotary Drilling Rig Model KR50A
Excavator Size 14t-16t 20t-23t 24t+
Max. torque 50 kN.m 50 kN.m 50 kN.m
Max. drilling diameter 1200 mm 1200 mm 1200 mm
Max. drilling depth 16 m 20 m 24 m
Main winch pull force 70 kN 75 kN 75 kN
Main cylinder trip 1100 mm 1100 mm 1100 mm
Auxiliary winch pull force 65 kN 65 kN 65 kN
Main winch speed 48 m/min 48 m/min 48 m/min
Mast inclination(Lateral) ±6° ±6° ±6°
Mast inclination(Forward) -30°~ ﹢90° -30°~﹢90° -30°~﹢90°
Working speed 7-40rpm 7-40rpm 7-40rpm
Min. radius of gyration 2800mm 2950mm 5360mm
Max. pilot pressure 31.5Mpa 31.5Mpa 31.5Mpa
Operating height 8868mm 9926mm 11421mm
Operating width 2600mm 2800mm 3300mm
Transport height 2731mm 3150mm 3311mm
Transport width 2600mm 2800mm 3300mm
Transport length 10390mm 11492mm 12825mm
Transport weight 6.1t 6.5t 7t
Remark Restructuring big arm Restructuring big arm Restructuring big arm

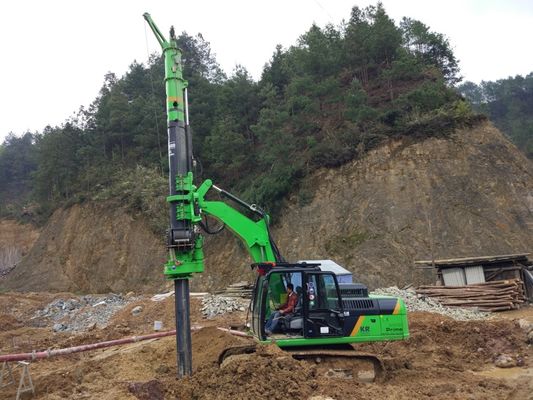

construction photos

TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig 0



TYSIM KR50A Max. Drilling Diameter 1200mm Max. Drilling Depth 24m High Stability Low Cost Hydraulic Drilling Rig 1

1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCMG



Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
