Big Crush Breaker Round / Square Hydraulic Concrete Pile Head

China Big Crush Breaker Round / Square Hydraulic Concrete Pile Head supplier

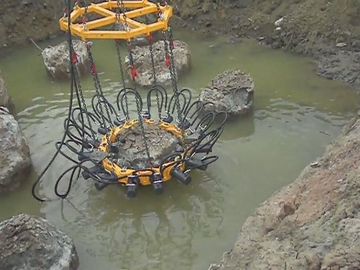

Large Image :  Big Crush Breaker Round / Square Hydraulic Concrete Pile Head

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE, ISO9001
Model Number: KP315A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden packing, suitable for shipping
Payment Terms: L/C, T/T
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Pile Diameter: 300~1050mm Max.rod Pressure: 280kN
Crowd Stroke: 135mm Max. Crowd Pressure: 30MPa
Max. Cylinder Required: 20L/min Quantity/8h: 40/8h
Max. Single Cutting Height: ≤300mm Single Module Weight: 100kg
Type: Hydraulic Pile Breaker Condition: New

Big Crush breaker Round/square Hydraulic Concrete Pile Head For Excavator 280kN 300mm-1050mm diameter KP315A



Technical Specification

Technical specification KP315A(13 modules combination)
Pile diameter Φ300~Φ1050mm
Max.rod pressure 280kN
Max. cylinder stroke 135mm
Max. crowd pressure 30MPa
Max. single cylinder flow 20L/min
Quantity/8h 40/8h
Max. single cutting height ≤300mm
Excavator capacity ≥20t
Single module weight 100kg
Single module size 645×444×316 mm
Operating size Φ2098×Φ4840 mm
Total weight 1.7t



KP315A construction parameters
Module numbers The diameter range Platform Weight Weight Height of single crush pile
6 Φ300~Φ350 mm ≥12 t 1000 kg ≤300 mm
7 Φ350~Φ450 mm ≥12 t 1100 kg ≤300 mm
8 Φ450~Φ550 mm ≥16 t 1200 kg ≤300 mm
9 Φ550~Φ650 mm ≥16 t 1300 kg ≤300 mm
10 Φ650~Φ760 mm ≥20 t 1400 kg ≤300 mm
11 Φ760~Φ860 mm ≥20 t 1500 kg ≤300 mm
12 Φ860~Φ960 mm ≥20 t 1600 kg ≤300 mm
13 Φ960~Φ1050 mm ≥20 t 1700 kg ≤300 mm



Product introduction

TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil, Australia,Vietman, Indonesia and many other countries.



KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
