KR80A High Performance Bored Pile Equipment Travel Speed 3.4 km/h 80kN.m Torque

China KR80A High Performance Bored Pile Equipment Travel Speed 3.4 km/h 80kN.m Torque supplier

Large Image :  KR80A High Performance Bored Pile Equipment Travel Speed 3.4 km/h 80kN.m Torque

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO9001
Model Number: KR80A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Torque: 80 KN.m Max. Drilling Diameter: 1000 Mm
Max. Drilling Depth: 28 M Speed Of Rotation: 8~30 Rpm
Max. Crowd Pressure: 80 KN Max. Crowd Pull: 120 KN
Main Winch Line Pull: 90 KN Auxiliary Winch Line Pull: 35 KN
Max. Cylinder Stoke: 2000mm Max. Operating Pressure: 34.3 Mpa
Pilot Pressure: 3.9 Mpa Max. Moving Speed: 3.4 Km/h
Max. Tractive Force: 98 KN Operating Height: 12580 Mm
Operating Width: 2700 Mm Transport Height: 3250 Mm
Transport Width: 2700 Mm Transport Length: 9150 Mm
Total Weight: 23 T

KR80A High Performance Bored Pile Equipment Travel Speed 3.4 km/h 80kN.m Torque



Specification:

Technical Specification of KR80A Rotary Drilling Rig
Max. Torque 80 kN.m
Max. diameter 1000 mm
Max. drilling depth 28 m
Speed of rotation 8~30 rpm
Max. crowd pressure 80 kN
Max. crowd pull 120 kN
Main winch line pull 90 kN
Main winch line speed 80 m/min
Auxiliary winch line pull 35 kN
Auxiliary winch line speed 40 m/min
Stroke(crowd system) 2000 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 3.4 km/h
Traction force 98 kN
Operating height 12580 mm
Operating width 2700 mm
Transport height 3250 mm
Transport width 2700 mm
Transport length 9150 mm
Overall weight 23 t



Description:

1. The leading overall transport hydraulic rotary drilling rig, can change transport state into working state rapidly;
2.  High-performance hydraulic system and control system in cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. High security, design in strict accordance with European Union safety standards EN791. Meet the requirements of dynamic and static stability;



Product Display

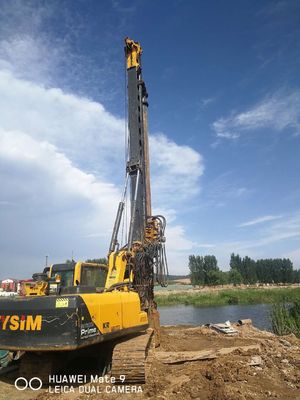

KR80A High Performance Bored Pile Equipment Travel Speed 3.4 km/h 80kN.m Torque


Why Choose Us?

1. We are the professional manufacturer of piling machinery in China, best quality & best service.

2. Supply professional customized service to meet all your requirements.

3. Competitive price.



FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.
