|Pile Diameter:||300~1050mm||Max.rod Pressure:||280kN|
|Crowd Stroke:||135mm||Max. Crowd Pressure:||30MPa|
|Max. Cylinder Required:||20L/min||Quantity/8h:||40/8h|
|Max. Single Cutting Height:||≤300mm||Single Module Weight:||100kg|
|Type:||Hydraulic Pile Breaker||Condition:||New|

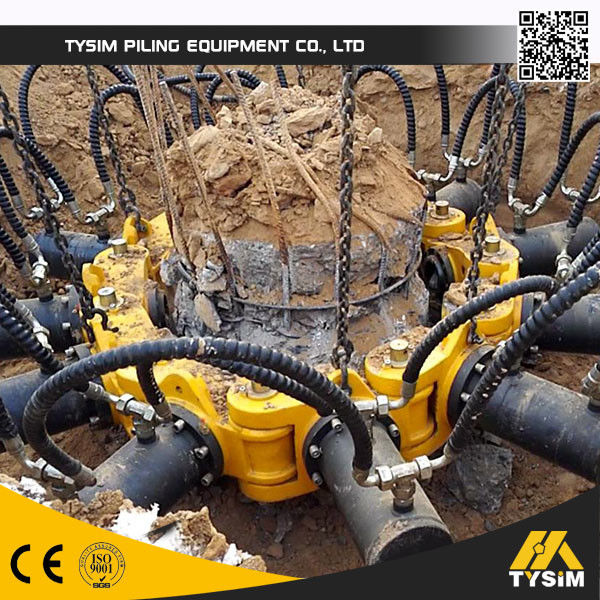

KP380A Hydraulic Round Pump Crushing Piles Rock Breaker Machinery High Efficiency
The hydraulic pile breaker have the most advanced way of breaker concrete piles in the world, and do with high efficiency, high life, low construction noise.
Modular design, rapid assembly, easy disassembly, any of two links can be connected together.
Different diameter of piles, just only need combination different numbers of links.
The machine performance is stable, simple operation, easy maintenance, environmental protection and energy saving.
When it is working, it can be fast connected with such as excavators, cranes who can provide power equipments.
Cutting pile breaker should meet the following requirements:
To prevent unable to transport spoil caused by insufficient lifting force of excavator, it is necessary to determine the broken pile length each time according to the power of the selected excavator;
To prevent unable to remove spoil of pile cutting after pouring concrete and steel solidification, it is unsuitable to use pre-springing on the top of pouring concrete reinforcing cage after completion of pile, and meanwhile it should install PVC pipes on the rebar of pile top;
KP380 Cut pile diameter range: 600-2500mm
Max. Cylinder pressure: 30MPa
Hydraulic cylinder stroke: 160mm
Weight of one link: 220KG
Excavator tonnage required: 20T.
30T : more than 1.5m dia.piles
Oil speed : 25L/min
