High Power Vibration Hydraulic Piling Rig Without DTH Hammer

China High Power Vibration Hydraulic Piling Rig Without DTH Hammer supplier

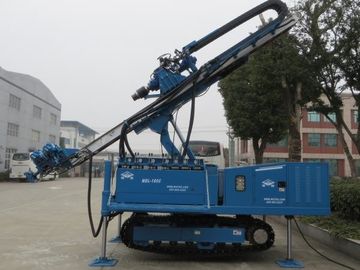

Large Image :  High Power Vibration Hydraulic Piling Rig Without DTH Hammer

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: ISO9001:2008
Model Number: MDL-C180

Payment & Shipping Terms:

Minimum Order Quantity: 1Set/Sets
Price: Negotiation
Packaging Details: In 40′container with drilling tools
Delivery Time: One month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: five set per month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu, China (Mainland) Type: Anchor Drilling Rig
Color: Can Be Custom-made Brand Name: Tysim
Name: High Power Vibration Anchor Drilling Rig Without DTH Hammer Reduce Hole Accidents

High Power Vibration Anchor Drilling Rig Without DTH Hammer Reduce Hole Accidents



Quick Detail:

1. The top of the power head can vibrate with big power without DTH hammer or air compressor.
2. The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.
3. MDL-C180 is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.
4. The machine can be used for foundation pit,protection of slope support,thnnel pipe shed.


Description:

1. MDL-C180 is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. MDL-C180is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.

3. This top head drive drill rig adopts variable hydraulic system and can vibrate with big power without DTH hammer or air compressor..The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.

4. This top drive drill equipment is applicable to anchor hole, such as urban foundation pit supporting . And is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.

Applications:
1. Anchor hole, such as urban foundation pit supporting .

2. It is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.



Specifications:

Hole depth 150-180m
Rod dia

150-250mm

Hole angle

0-110°
Output rotary speed of power head 8-150r/min
Drill rod diameter 76/136,89/146mm
Output torque of power head 7200/10200N.m
Impact power 500N.m
Impact frequency 1500-2200min-l
Lifting force 75KN
Feeding force 40KN
Stroke of slide frame 1500mm
Power Electric motor: 55+18.5+3KW
Weight 7000KG
Dimensions (L×W×H) 5400×2100×2050mm
