KR125C 43M Depth 1.3M Dia Foundation Drill Rigs / Hydraulic Construction Pile Driver High Stability Low Cost

Place of Origin Jiangsu, China
Brand Name TYSIM
Certification CE/ISO9001
Model Number KR125C
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time 45 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 30 sets per month
Product Details
Product Name KR125C Hydraulic Piling Rig Condition New
Weight 37 T Dimension 13970*3000*3500 Mm
Warranty 1 Year After-sales Service Provided Overseas Third-party Support Available
Torque 125 KN.m Max. Drilling Diameter 1300 Mm
Max. Drilling Depth 43 M
High Light

bored pile drilling machine


hydraulic rig machine

Leave a Message
Product Description

Max drilling diameter 1300mm KR125C Piling machine Used borehole drilling machine Small bored pile driving machine
Torque: 125kN.m
Max. drilling diameter:1300mm
Max. drilling depth: 43m
Using Original CAT 320D Excavator Chassis
Competitive Advantage:
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier in China


Technical Specification of KR125C Rotary Drilling Rig
Torque125 kN.m
Max. diameter1300 mm
Max. drilling depth43 m
Speed of rotation8~30 rpm
Max. crowd pressure100 kN
Max. crowd pull150 kN
Main winch line pull110 kN
Main winch line speed78 m/min
Auxiliary winch line pull60 kN
Auxiliary winch line speed60 m/min
Stroke(crowd system)3200 mm
Mast inclination(lateral)±3°
Mast inclination(forward)
Max. hydraulic pressure35 MPa
Control hydraulic pressure3.9 MPa
Max. moving speed2.8 km/h
Traction force205 kN
Operating height15262 mm
Operating width2980 mm
Transport height3500 mm
Transport width2980 mm
Transport length13970 mm
Overall weight36 t

1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;

4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.
Product Display

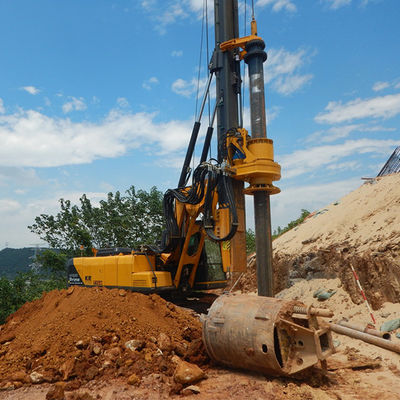

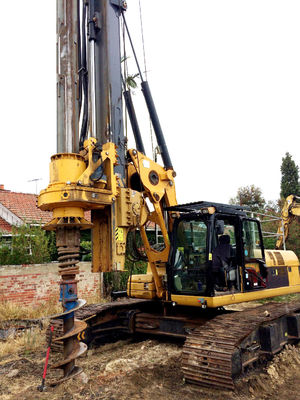

KR125C 43M Depth 1.3M Dia Foundation Drill Rigs / Hydraulic Construction Pile Driver High Stability Low Cost 0KR125C 43M Depth 1.3M Dia Foundation Drill Rigs / Hydraulic Construction Pile Driver High Stability Low Cost 1
packing show

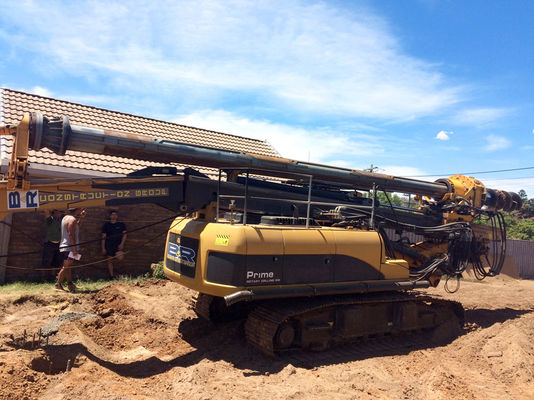

KR125C 43M Depth 1.3M Dia Foundation Drill Rigs / Hydraulic Construction Pile Driver High Stability Low Cost 2


Our Services

Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.


Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
